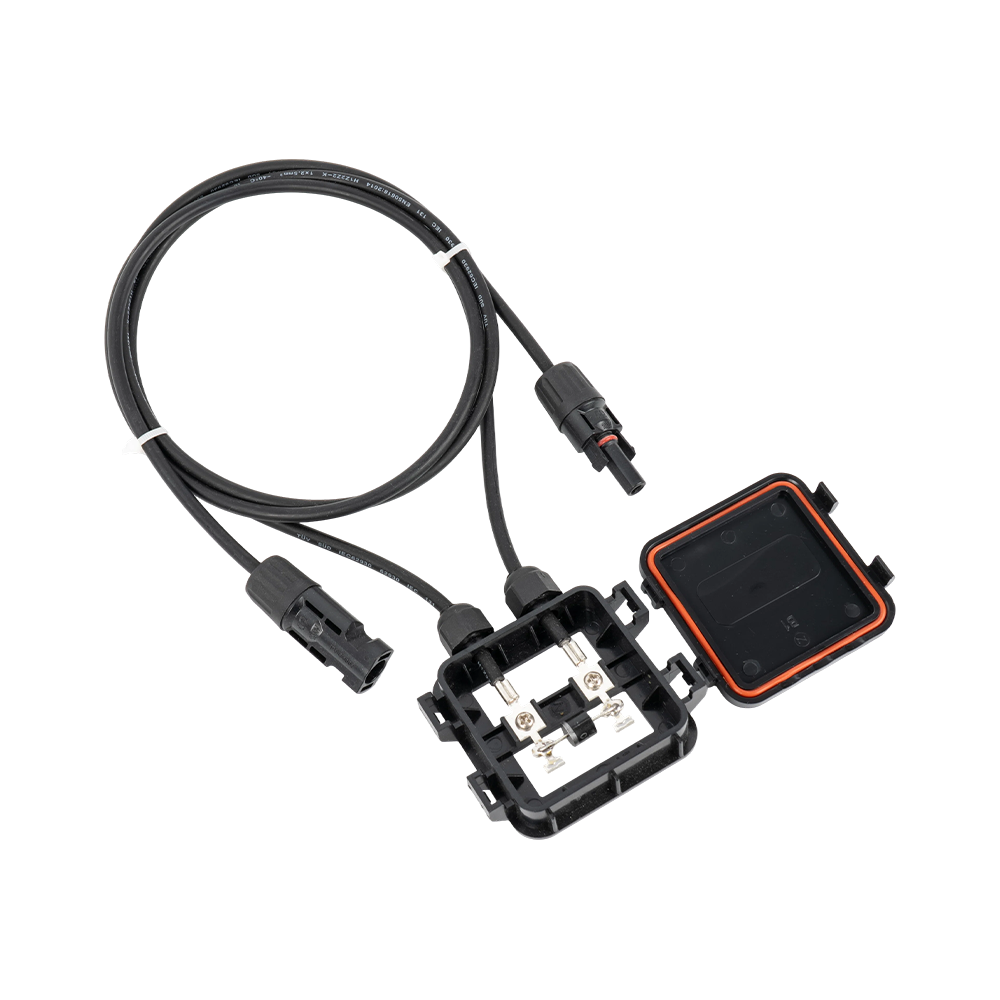

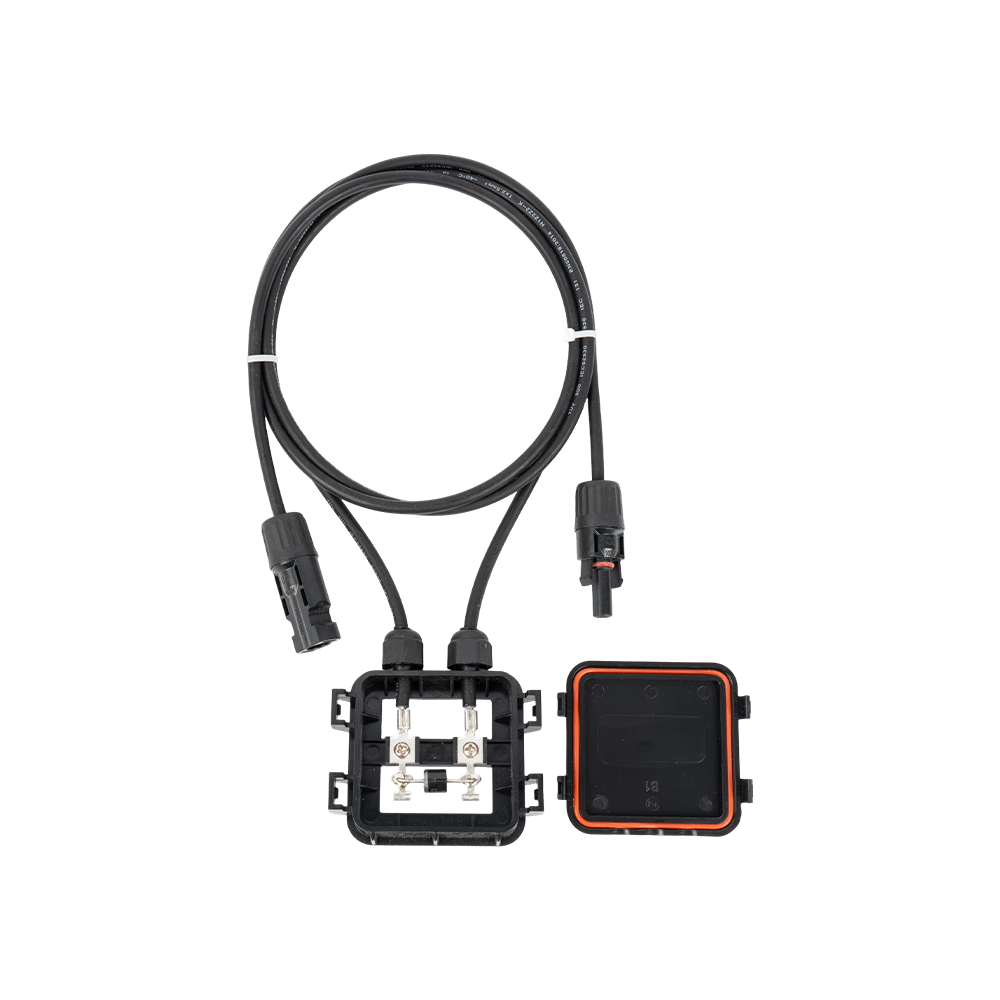

Special Junction Box For Small Power Components
  • Special Junction Box For Small Power Components
  • Special Junction Box For Small Power Components
  • Special Junction Box For Small Power Components

Special Junction Box For Small Power Components

Key Advantages:
Ultra-lightweight and ultra-thin profile. Its primary strength lies in a miniaturized design specifically engineered to complement the slim, lightweight nature of thin-film modules.

Inquiry Now
  • Product Specifications
  • Get A Quote
  • Product Features:
    Despite its compact size, there is no compromise on heat dissipation or electrical safety standards. It features a streamlined internal layout for intuitive, simple operation. With a high waterproof rating, it withstands heavy rain and snow accumulation.

    Applications:
    Designed specifically for thin-film solar panels, foldable solar chargers, portable power supplies for outdoor camping, and small-scale DIY off-grid systems.

    FAQs and Solutions:
    Issue: Does the compact size lead to overheating?
    Solution: Thermal simulation was used during design for low-power loads; natural convection cooling is sufficient to maintain safe internal temperatures.

    Important Note: Strictly avoid overloading with high-power crystalline silicon modules; exceeding the rated current capacity can cause internal components to burn out.

    Parameter Specification
    Overall Dimensions L 55×W 77×H 10mm (Without wire, with cover closed)
    Rated Current 3A
    Withstand Voltage 1000V DC (TUV)
    Safety Class Class Ⅱ
    Operating Environment Range Temperature: -40℃ ~ +85℃, Humidity: <95%
    Protection Class IP65
    Flame Retardant Class UL94-V0 (Only for plastic material parts)
    Contact Resistance ≤5 mΩ
    Pollution Degree Class II
    Overvoltage Category Class III
    Cable Specification 2×2.5mm²
