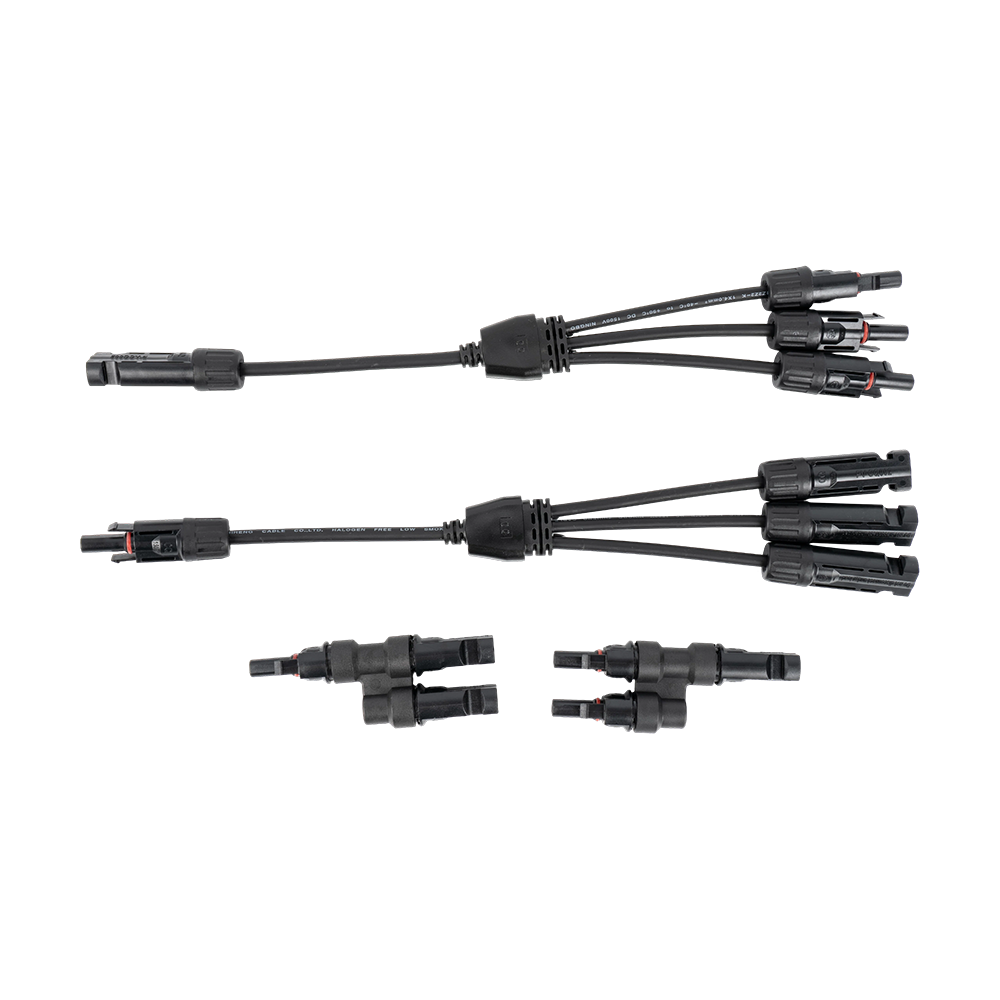

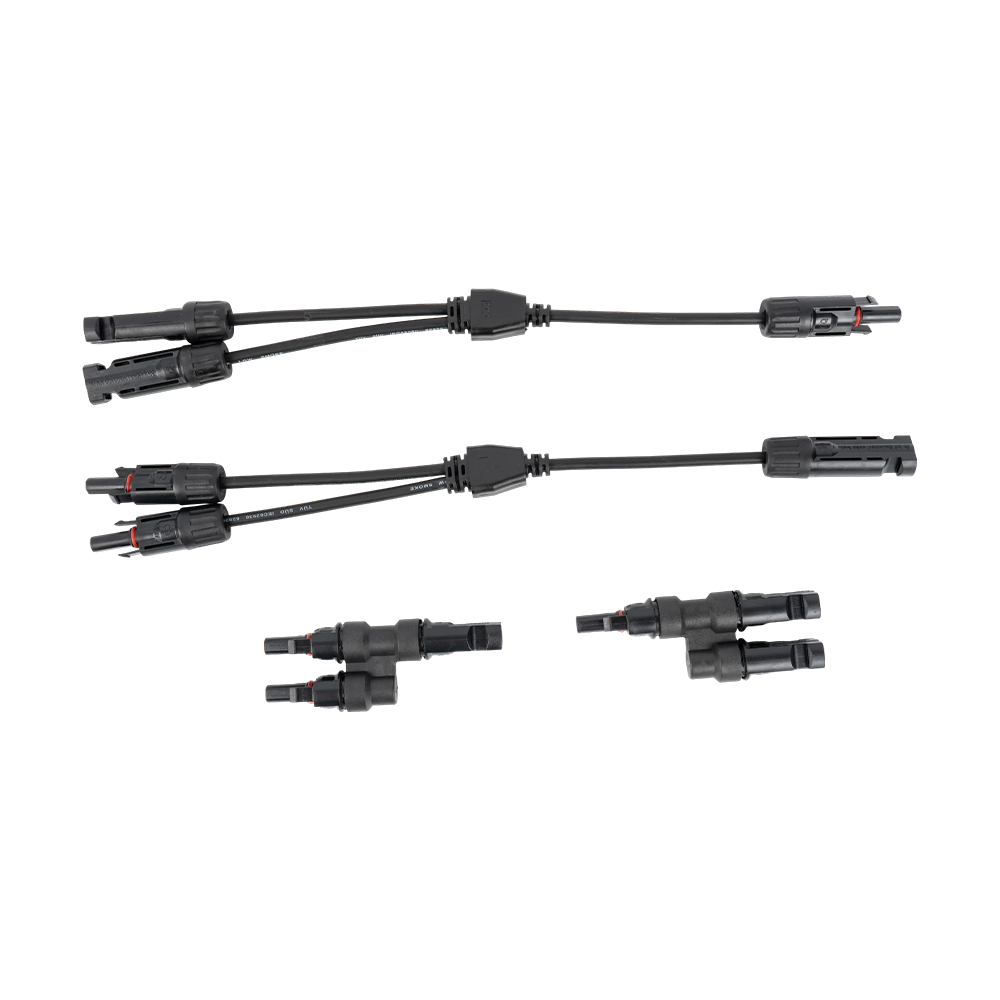

High-Conductivity Silver Contact Male Connector
  • High-Conductivity Silver Contact Male Connector
  • High-Conductivity Silver Contact Male Connector
  • High-Conductivity Silver Contact Male Connector

High-Conductivity Silver Contact Male Connector

Key Advantages:
Features high-precision silver- and tin-plated copper terminals, offering exceptionally low contact resistance. In high-voltage DC circuits, this effectively prevents heat buildup and fundamentally minimizes the risk of arc-induced burn-through.

Inquiry Now
  • Product Specifications
  • Get A Quote
  • Product Features:
    Rated IP67 for water and dust resistance; the housing is made of imported, high-strength, flame-retardant engineering plastic that is UV-resistant, anti-aging, and dimensionally stable under extreme temperature fluctuations. Equipped with a self-locking snap-in mechanism for superior retention and resistance to accidental disconnection.

    Applications:
    Universally compatible with PV module output leads, inverter DC input ports, and combiner box connections; a critical component for photovoltaic wiring.

    Common Issues & Solutions:
    Issue: Overheating at the connection point.
    Solution: Ensure the connector is fully locked and an audible "click" is heard; an incomplete lock reduces contact area, leading to temperature rise.

    Important Precautions: Do not connect or disconnect under load. Always disconnect the inverter's DC circuit breaker before performing maintenance.

    Parameter Specification
    Overall Dimensions L 88×Φ18.8
    Certificate Number B0926840006 Rev(TUV)
    Rated Current 30A
    Withstand Voltage Value 1500V DC (TUV)
    Safety Class Class Ⅱ
    Operating Environment Range Temperature: -40℃ ~ +85℃, Humidity: <95%
    Protection Class IP68
    Flame Retardant Class Copper, tin plated
    Contact Resistance ≤5 mΩ
    Cable Specification 2.5 mm² / 4 mm² / 6 mm²
