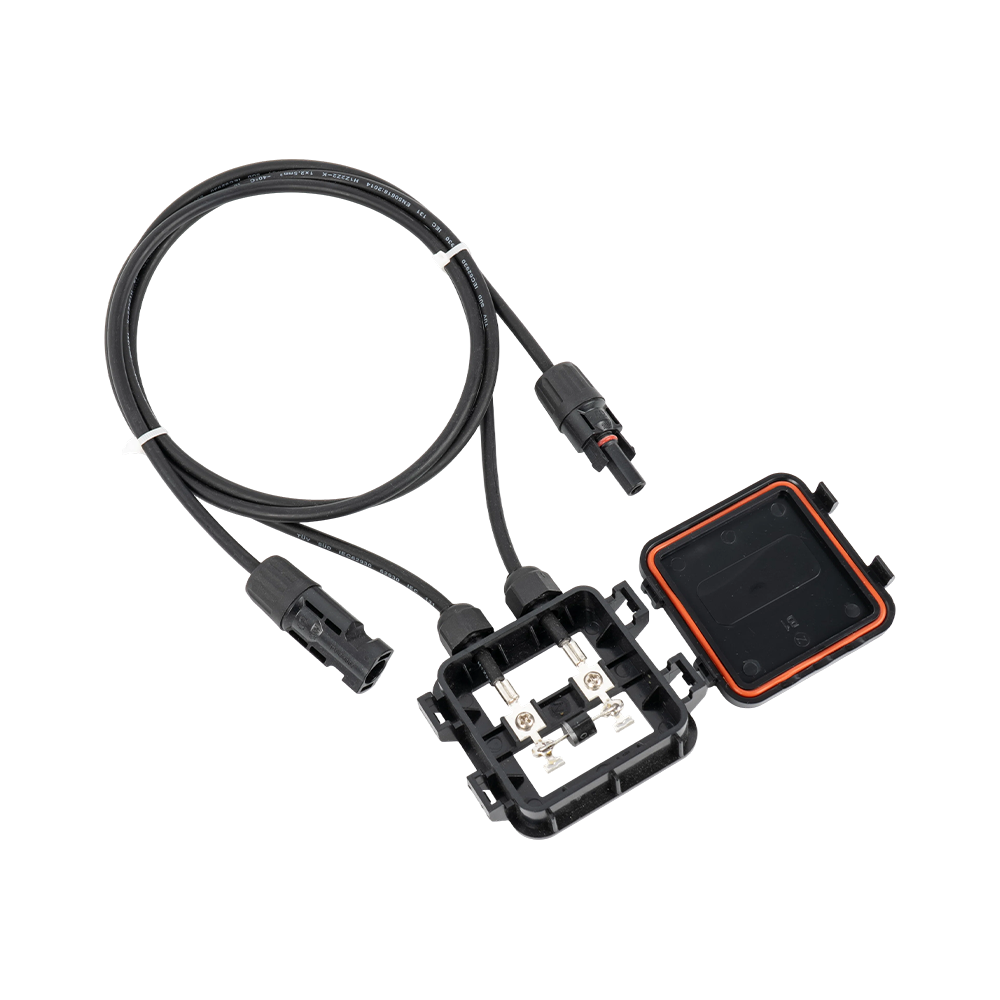

Optional Dual Outlet Quick Installation Junction Box
  • Optional Dual Outlet Quick Installation Junction Box
  • Optional Dual Outlet Quick Installation Junction Box
  • Optional Dual Outlet Quick Installation Junction Box

Optional Dual Outlet Quick Installation Junction Box

Key Advantage:
Users can freely choose to activate one or two cable outlets based on the power station's specific wiring requirements; this significantly reduces the variety of parts needed for projects and lowers inventory complexity.

Inquiry Now
  • Product Specifications
  • Get A Quote
  • Product Features:
    Simple, straightforward structure allowing for extremely rapid installation. The housing is made of high-strength, flame-retardant engineering plastic. It provides excellent waterproof sealing, with a seal lifespan matching that of the PV modules.

    Applications:
    Suitable for small-scale distributed arrays, BIPV projects, and multi-angle PV system layouts that require customized cable routing.

    FAQ & Solutions:
    Issue: Does the unused outlet leak in single-outlet mode?
    Solution: The original factory-supplied sealing plug must be used and tightened securely to maintain the IP67 protection rating.

    Important Note: Regularly check the tightness of the outlet nuts to ensure the seal remains secure against long-term wind-induced vibration.

    Parameter Specification
    Overall Dimensions L 80×W 82×H 19mm (Without wire, with cover closed)
    Rated Current 5A
    Withstand Voltage 1000V DC (TUV)
    Safety Class Class Ⅱ
    Operating Environment Range Temperature: -40℃ ~ +85℃, Humidity: <95%
    Protection Class IP65
    Flame Retardant Class UL94-V0 (Only for plastic material parts)
    Contact Resistance ≤5 mΩ
    Pollution Degree Class II
    Overvoltage Category Class III
    Cable Specification 2.5mm²
