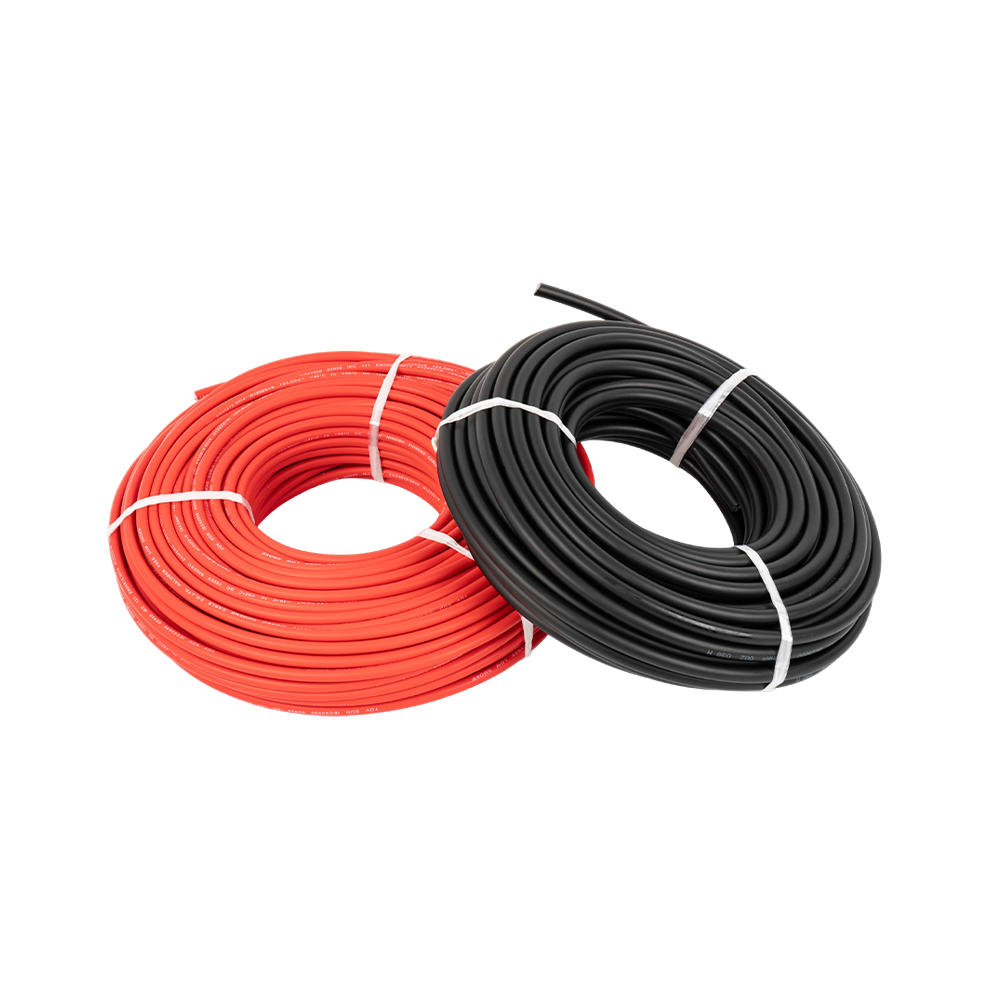

Anti-Aging Photovoltaic Combiner Cable
  • Anti-Aging Photovoltaic Combiner Cable
  • Anti-Aging Photovoltaic Combiner Cable

Anti-Aging Photovoltaic Combiner Cable

Key Advantages:
Specifically designed for high-current, long-span DC transmission, the large 6mm² cross-section effectively mitigates voltage drop during high-load operation. Its core strengths lie in exceptional power transmission efficiency and superior resistance to abrasion and crushing, making it suitable for use in extremely harsh field installation environments.

Inquiry Now
  • Product Specifications
  • Get A Quote
  • Product Features:
    The conductor features an 84/0.28TS structure with an outer diameter of 6.2mm. The dual-layer XLPO jacket has passed long-term simulated outdoor aging tests and offers top-tier UV resistance. Low-smoke, zero-halogen (LSZH) materials ensure high system safety under extreme fire conditions.

    Applications:
    Suitable for centralized PV power plants, high-power string inverter combining, and DC trunk lines in extreme geographical environments such as deserts and tidal flats.

    FAQs and Solutions:
    Issue: Will it deform at high temperatures?
    Solution: XLPO is a cross-linked material with "thermoset" properties; it maintains structural stability even at high temperatures of +120°C and does not undergo flow-induced deformation.

    Important Notes: Voltage drop coefficients must be rigorously calculated during system design; this specification should be prioritized for long-span cabling to maximize downstream output power.

    84/0.28TS
    OD:6.2mm
