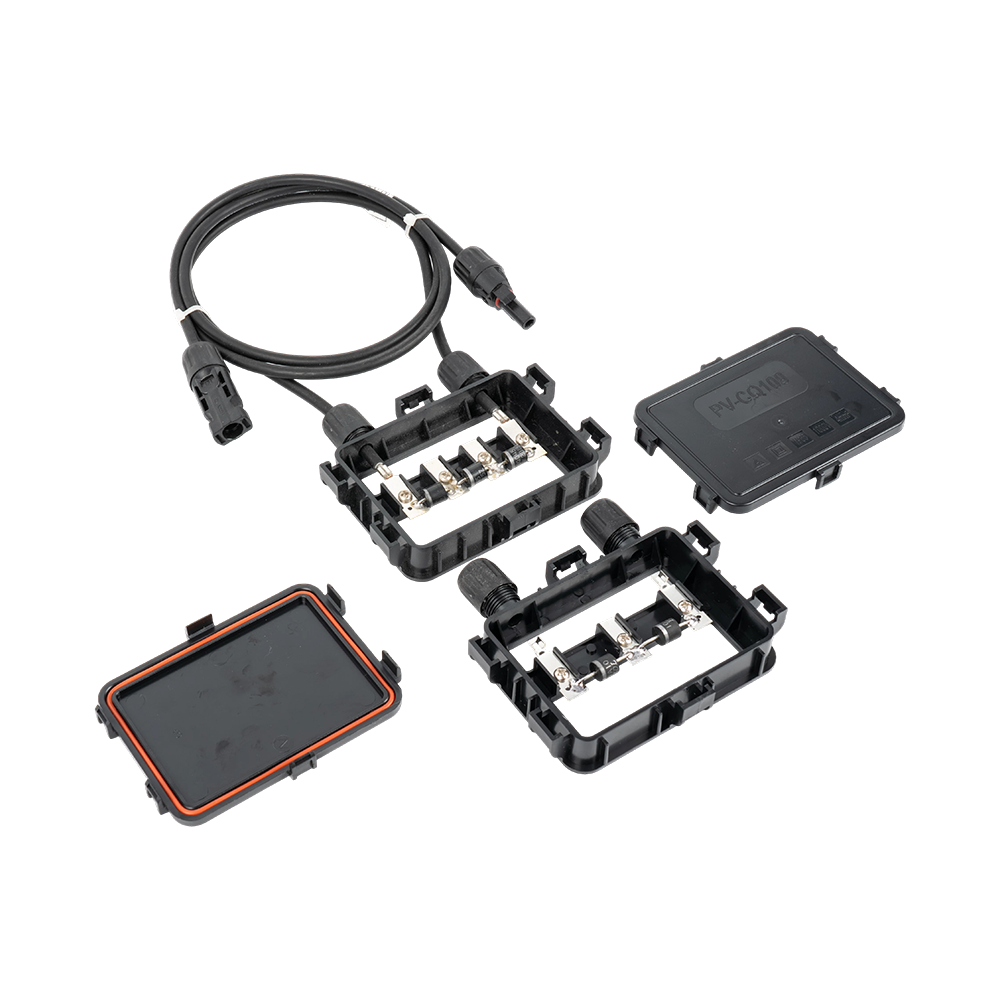

Low Loss Dual Glass Compatible Photovoltaic Junction Box
  • Low Loss Dual Glass Compatible Photovoltaic Junction Box
  • Low Loss Dual Glass Compatible Photovoltaic Junction Box

Low Loss Dual Glass Compatible Photovoltaic Junction Box

Key Advantage:
The core strength of this product lies in its ultra-low internal impedance design. An optimized conductive circuit minimizes energy loss at the output terminal.

Inquiry Now
  • Product Specifications
  • Get A Quote
  • Product Features:
    Compact size, high cost-effectiveness, and simple operation. It has passed rigorous TÜV testing and is designed for compatibility with both standard and double-glass modules. High-efficiency bypass diodes are integrated internally to prevent the hot-spot effect.

    Applications:
    Widely used in standard residential PV panels, transparent double-glass modules, and distributed systems where cost and size are critical factors.

    Common Issues and Solutions:
    Issue: Localized heating caused by partial shading.
    Solution: This indicates the bypass diode is engaging. The product's thermal design meets standards; operation is normal provided the temperature rise remains within permissible limits.

    Important Note: When adhering the unit to the backsheet, ensure the adhesive is applied evenly and smoothly to prevent seal failure caused by long-term temperature cycling.

    Parameter Specification
    Technical standard IEC 62790:2020
    Certificate number B0926840005 Rev.02(TUV)
    Rated current 20A/25A/30A
    Withstand voltage value 1500V DC(TUV)
    Safety class Class Ⅱ
    Operating environment range Temperature: -40℃ ~ +85℃, Humidity: <95%
    Protection class IP68
    Flame retardant class UL94-V0 (Only refers to the plastic material part)
    Connection mode Welding
    Weld tape width Max 8.2mm
    Busbar spacing 6-16mm
    Waterproof structure Potting adhesive
    Glue-filling quantity About 21ml (7ml×3 PCS)
    Insulating material PPO
    Contact material Copper (tinned)
    Cable specification 1×4mm²
