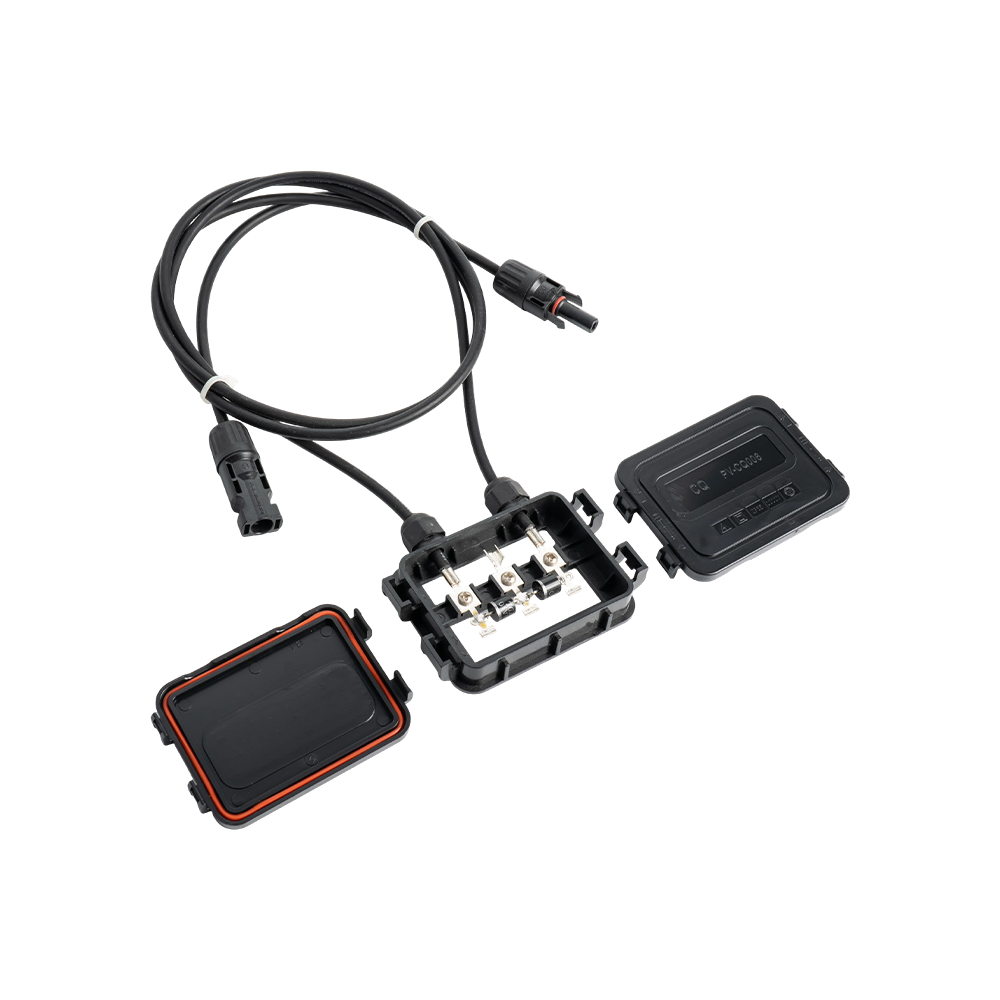

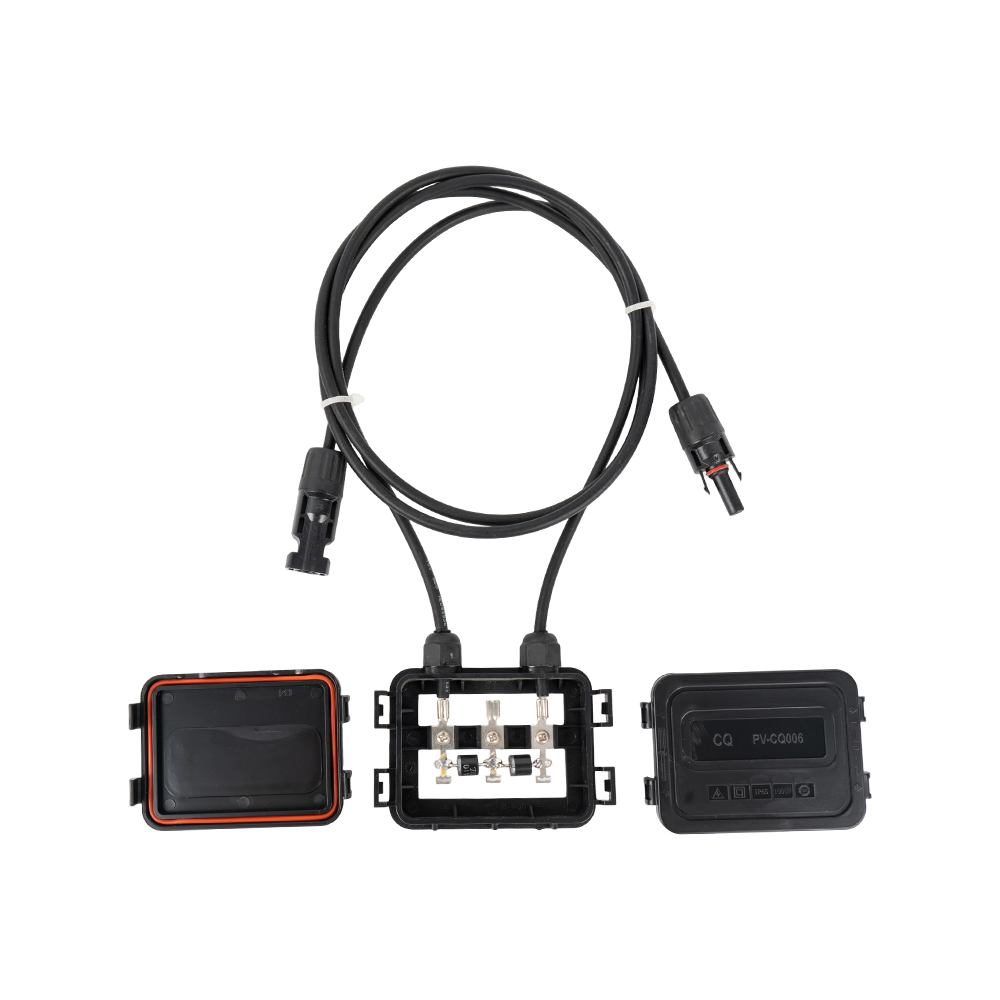

Glue Filled Conventional Large Component Junction Box
  • Glue Filled Conventional Large Component Junction Box
  • Glue Filled Conventional Large Component Junction Box
  • Glue Filled Conventional Large Component Junction Box

Glue Filled Conventional Large Component Junction Box

Key Advantages:
Specifically developed for large-format modules. Its primary strength lies in the use of an advanced potting and sealing process, delivering superior insulation and waterproofing capabilities that easily withstand the extreme environmental challenges of high-humidity and high-rainfall regions.

Inquiry Now
  • Product Specifications
  • Get A Quote
  • Product Features:
    Features a simple yet robust structure and is TÜV certified. The potting material offers excellent thermal conductivity, facilitating rapid heat dissipation for internal electronic components and ensuring long-term stability even under high-current operating conditions.

    Applications:
    Suitable for integration with standard large-scale industrial modules; performs exceptionally well in coastal high-humidity power plants and ground-mounted utility-scale solar farms.

    FAQs and Solutions:
    Issue: Does an uneven potting surface affect performance?
    Solution: The production line utilizes an automated precision dispensing system to ensure consistent sealing depth. Minor surface irregularities do not compromise the IP67/68-rated protection.

    Important Note: Once the potting and sealing process is complete, disassembly is strictly prohibited; doing so will permanently compromise the unit's original high-performance sealing integrity.

    Parameter Specification
    Technical standard IEC 62790:2020
    Certificate number B0926840005 Rev.02(TUV)
    Rated current 20A/25A/30A
    Withstand voltage value 1500V DC(TUV)
    Safety class Class Ⅱ
    Operating environment range Temperature: -40℃ ~ +85℃, Humidity: <95%
    Protection class IP68
    Flame retardant class UL94-V0 (Only refers to the plastic material part)
    Connection mode Welding
    Weld tape width Max 8.2mm
    Busbar spacing 6-16mm
    Waterproof structure Potting adhesive
    Glue-filling quantity About 21ml (7ml×3 PCS)
    Insulating material PPO
    Contact material Copper (tinned)
    Cable specification 1×4mm²
