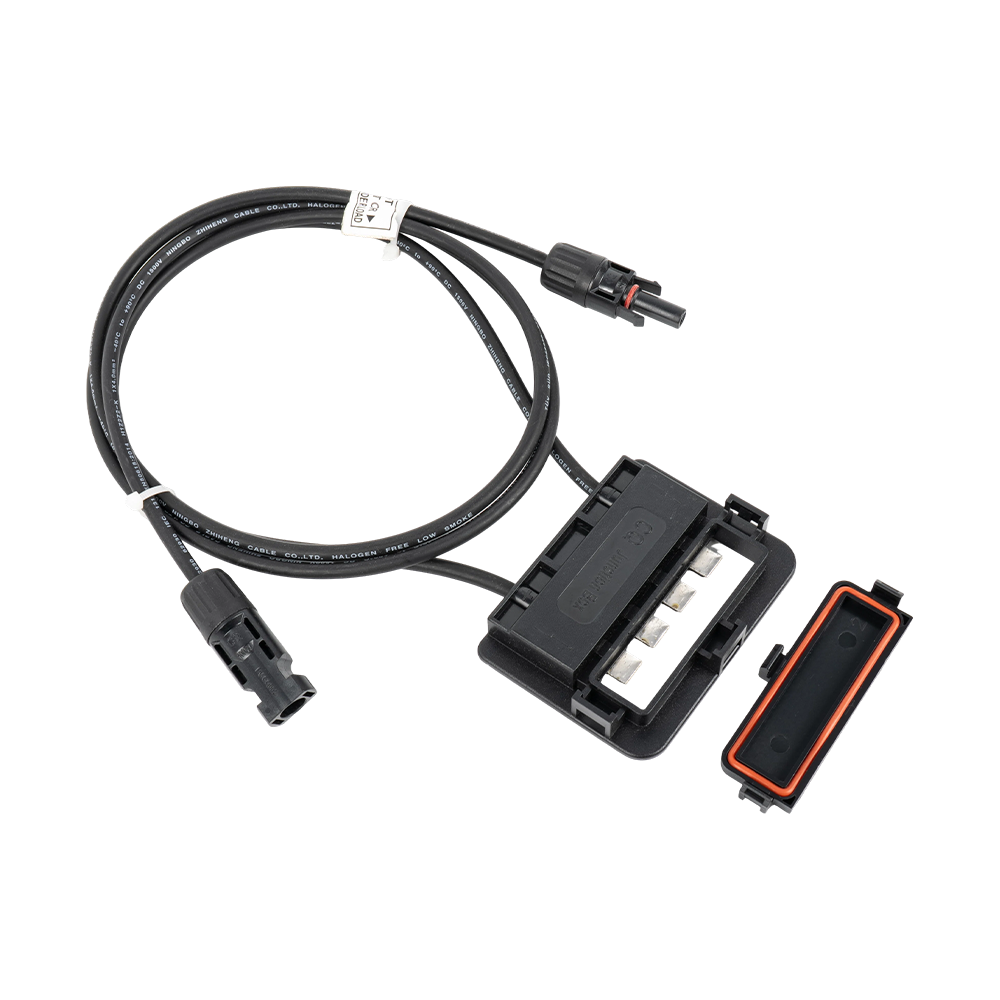

Interchangeable Diode Wide Scene Junction Box
  • Interchangeable Diode Wide Scene Junction Box
  • Interchangeable Diode Wide Scene Junction Box

Interchangeable Diode Wide Scene Junction Box

Key Advantage:
The internal diode model can be swapped based on the module's actual output current, enabling "one-box compatibility" across multiple power ratings and significantly enhancing product longevity and maintenance flexibility.

Inquiry Now
  • Product Specifications
  • Get A Quote
  • Product Features:
    Features a smart, compact structure for easy installation. An excellent internal airflow design effectively manages diode junction temperatures. The sealing gasket is made of special fluoroelastomer, offering superior aging resistance.

    Applications:
    Suitable for photovoltaic research projects, R&D testing, and engineering applications requiring flexible current rating adjustments to match various inverter configurations.

    FAQs and Solutions:
    Issue: Will replacing internal components compromise the seal?
    Solution: After replacement, clean any debris from the sealing surface and ensure the gasket is fully reseated. The design supports repeated opening and reassembly.

    Important Notes: The DC circuit must be disconnected before replacing internal diodes; verify that the new component's specifications comply with the photovoltaic module's maximum output limits.

    Parameter Specification
    Overall Dimensions L 100×W 68×H 20mm (Without wire, with cover closed)
    Certificate No. B0926840005 Rev.02 (TUV)
    Rated Current 8A
    Withstand Voltage 1000V DC (TUV)
    Safety Class Class Ⅱ
    Operating Environment Range Temperature: -40℃ ~ +85℃, Humidity: <95%
    Protection Class IP65
    Flame Retardant Class UL94-V0 (Only for plastic material parts)
    Contact Resistance ≤5 mΩ
    Pollution Degree Class II
    Overvoltage Category Class III
    Cable Specification 2.5mm²
